| d | 70 |
| D | 150 |
| T | 38 |
| B | 35 |
| C | 30 |
| R徑向 | 3 |
| R軸向 | 3 |
| r徑向 | 2.5 |
| r軸向 | 2.5 |
| Cr | 223 |
| Cor | 262 |
| 脂潤滑 | 2400 |
| 油潤滑 | 3400 |

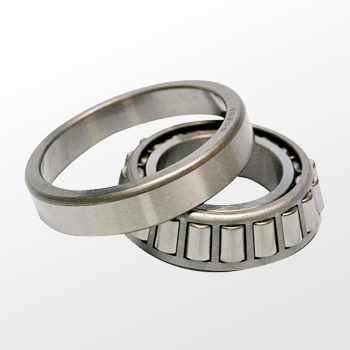

| 軸承代號 | 30314 |
| 重量 Kg |
3.08 |
| da(max) | 89 |
| db(min) | 82 |
| Da(min) | 130 |
| Da(max) | 138 |
| Db(min) | 141 |
| Ca(min) | 5 |
| Cb(min) | 8 |
| e | 0.35 |
| Y | 1.7 |
| Yo | 0.96 |
| a | 30 |
